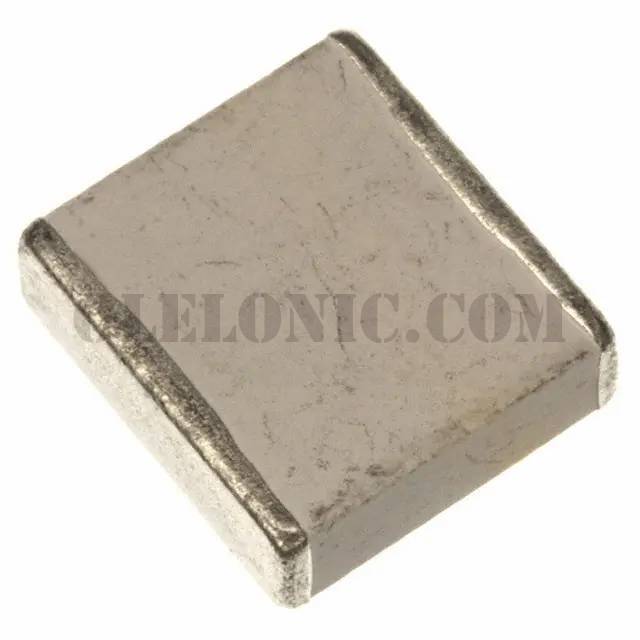

Categories	Capacitors / Ceramic Capacitors
Datasheet	Hi-Q High RF Power
Standard Package	24
Manufacturer	AVX Corporation
Series	Hi-Q®
Packaging	Tray
Part Status	Active
Capacitance	2200pF
Tolerance	±2%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	P90
Operating Temperature	-55°C ~ 125°C
Features	High Q, Low Loss, Ultra Low ESR, High Voltage
Ratings	-
Applications	RF, Microwave, High Frequency
Mounting Type	Surface Mount, MLCC
Package / Case	3838 (9797 Metric)
Size / Dimension	0.380" L x 0.380" W (9.65mm x 9.65mm)
Height - Seated (Max)	-
Thickness (Max)	0.170" (4.32mm)
Lead Spacing	-
Lead Style	-

HQCCWA120GAT6A	AVX Corporation, 12pF ±2% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 2325 (5864 Metric), Hi-Q®	View
222523K66P20BQTAF9LM	Knowles Syfer, 6.2pF ±0.1pF 3600V (3.6kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
222523K63P30BQTAF9LM	Knowles Syfer, 3.3pF ±0.1pF 3600V (3.6kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
060321000820GQTLSM	Knowles Syfer, 82pF ±2% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric),	View
111122K06P20BQTAF9LM	Knowles Syfer, 6.2pF ±0.1pF 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
111121K00101GQTAF9LM	Knowles Syfer, 100pF ±2% 1000V (1kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
111122K00360GQTAF9LM	Knowles Syfer, 36pF ±2% 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
222523K00181GQTAF9LM	Knowles Syfer, 180pF ±2% 3000V (3kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
111122K04P70BQTAF9LM	Knowles Syfer, 4.7pF ±0.1pF 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
111122K01P20BQTAF9LM	Knowles Syfer, 1.2pF ±0.1pF 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
222523K00391JQTAF9LM	Knowles Syfer, 390pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
222523K60300GQTAF9LM	Knowles Syfer, 30pF ±2% 3600V (3.6kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View

HQCEAM222GAH6A

Part NumberHQCEAM222GAH6A
