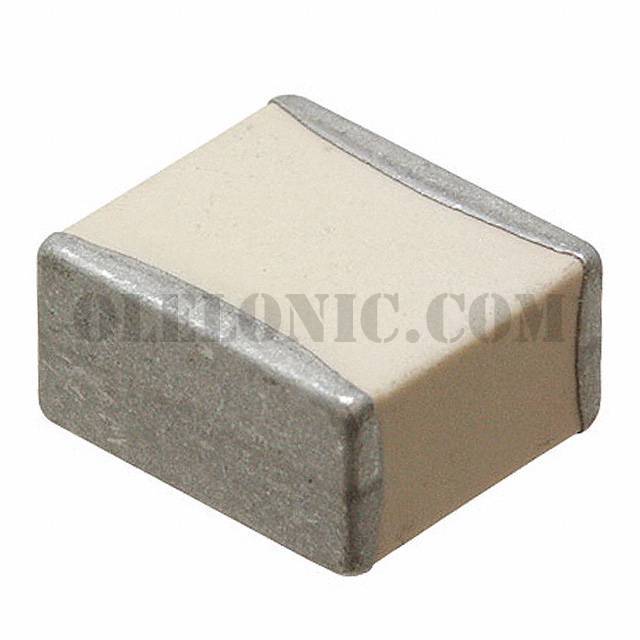

Categories	Capacitors / Ceramic Capacitors
Datasheet	Hi-Q High RF Power
Standard Package	36
Manufacturer	AVX Corporation
Series	Hi-Q®
Packaging	Tray
Part Status	Active
Capacitance	6.8pF
Tolerance	±0.25pF
Voltage - Rated	2500V (2.5kV)
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	High Q, Low Loss, Ultra Low ESR, High Voltage
Ratings	-
Applications	RF, Microwave, High Frequency
Mounting Type	Surface Mount, MLCC
Package / Case	2325 (5864 Metric)
Size / Dimension	0.230" L x 0.250" W (5.84mm x 6.35mm)
Height - Seated (Max)	-
Thickness (Max)	0.145" (3.68mm)
Lead Spacing	-
Lead Style	-

111122K01P50BQTAF9LM	Knowles Syfer, 1.5pF ±0.1pF 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
111122K05P10BQTAF9LM	Knowles Syfer, 5.1pF ±0.1pF 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
222523K60270GQTAF9LM	Knowles Syfer, 27pF ±2% 3600V (3.6kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
HQCEMA180JAT6A	AVX Corporation, 18pF ±5% 7200V (7.2kV) Ceramic Capacitor C0G, NP0 3838 (9797 Metric), Hi-Q®	View
222523K62P20BQTAF9LM	Knowles Syfer, 2.2pF ±0.1pF 3600V (3.6kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
HQCEMM680GAH6A	AVX Corporation, 68pF ±2% 7200V (7.2kV) Ceramic Capacitor P90 3838 (9797 Metric), Hi-Q®	View
222523K60620GQTAF9LM	Knowles Syfer, 62pF ±2% 3600V (3.6kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
060322500150FQTLSM	Knowles Syfer, 15pF ±1% 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric),	View
111122K00300GQTAF9LM	Knowles Syfer, 30pF ±2% 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
222526300472JQTAF9LM	Knowles Syfer, 4700pF ±5% 630V Ceramic Capacitor C0G, NP0 2225 (5763 Metric),	View
111122K06P20BQTAF9LM	Knowles Syfer, 6.2pF ±0.1pF 2000V (2kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
HQCEMA470GAT6A	AVX Corporation, 47pF ±2% 7200V (7.2kV) Ceramic Capacitor C0G, NP0 3838 (9797 Metric), Hi-Q®	View

HQCCWA6R8CAT6A

Part NumberHQCCWA6R8CAT6A
