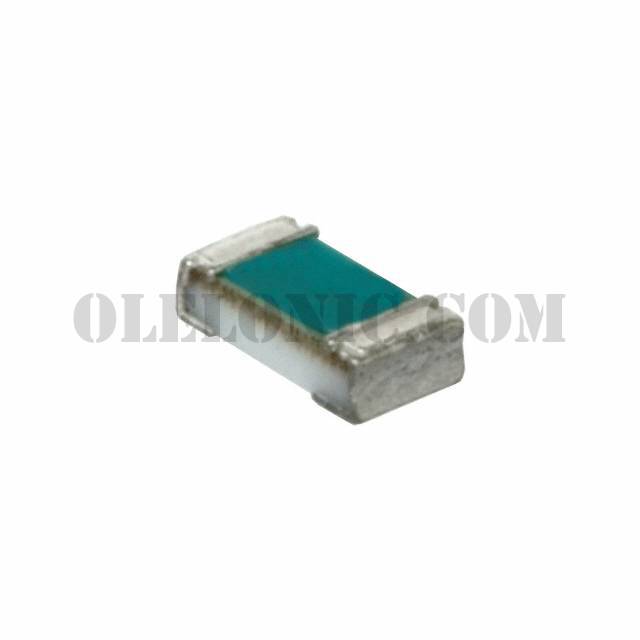

HPL0603-1N0

Part NumberHPL0603-1N0

ManufacturerSusumu

DescriptionFIXED IND 1NH 510MA 240 MOHM SMD

DatasheetHPL Series Datasheet

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1nH Unshielded Thin Film Inductor 510mA 240mOhm Max 0201 (0603 Metric)

To learn about the specification of HPL0603-1N0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HPL0603-1N0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HPL0603-1N0.
We are offering HPL0603-1N0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HPL0603-1N0 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HPL Series Datasheet

Standard Package

10000

Manufacturer

Susumu

Series

HPL

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Thin Film

Material - Core

Inductance

1nH

Tolerance

±0.2nH

Current Rating (Amps)

510mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

240mOhm Max

Q @ Freq

10 @ 300MHz

Frequency - Self Resonant

10GHz

Ratings

Operating Temperature

Inductance Frequency - Test

500MHz

Mounting Type

Surface Mount

Package / Case

0201 (0603 Metric)

Supplier Device Package

0201 (0603 Metric)

Size / Dimension

0.024" L x 0.012" W (0.60mm x 0.30mm)

Height - Seated (Max)

0.013" (0.33mm)
