HP8S36TB

Part NumberHP8S36TB

ManufacturerRohm Semiconductor

Description30V NCH+NCH MIDDLE POWER MOSFET,

DatasheetHP8S36

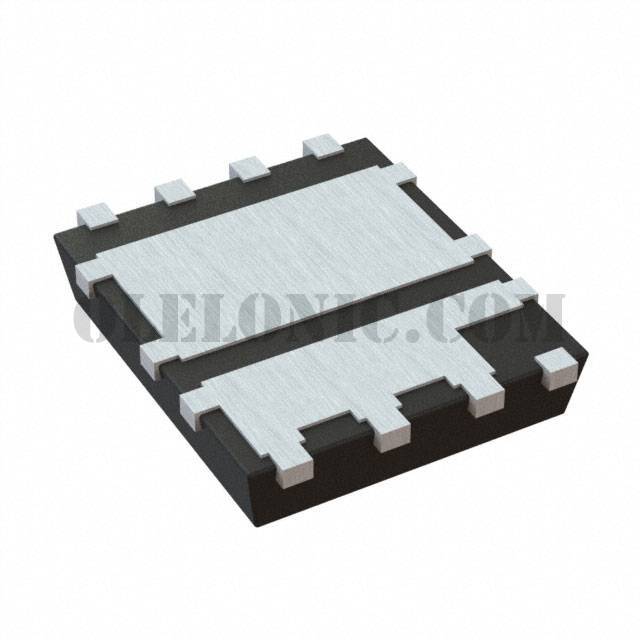

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 30V 27A, 80A 29W Surface Mount 8-HSOP

To learn about the specification of HP8S36TB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HP8S36TB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HP8S36TB.
We are offering HP8S36TB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HP8S36TB - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	HP8S36
Standard Package	2500
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	-
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	27A, 80A
Rds On (Max) @ Id, Vgs	2.4mOhm @ 32A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	47nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	6100pF @ 15V
Power - Max	29W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-HSOP
