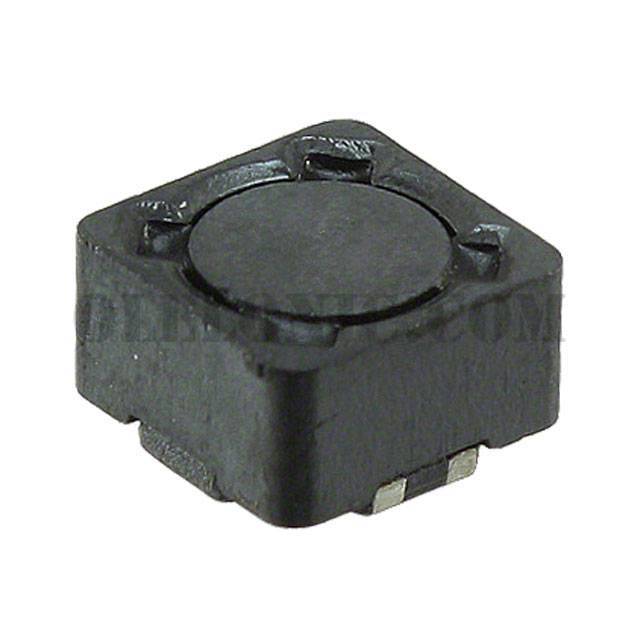

HM78D-7552R2MLFTR

Part NumberHM78D-7552R2MLFTR

ManufacturerTT Electronics/BI Magnetics

DescriptionINDUCT ARRAY 2 COIL 2.2UH SMD

DatasheetHM78D Model

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 7.944µH Inductance - Connected in Series 2.2µH Inductance - Connected in Parallel 13mOhm DC Resistance (DCR) - Parallel 4.66A Nonstandard

To learn about the specification of HM78D-7552R2MLFTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HM78D-7552R2MLFTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HM78D-7552R2MLFTR.
We are offering HM78D-7552R2MLFTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HM78D-7552R2MLFTR - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

HM78D Model

Standard Package

1000

Manufacturer

TT Electronics/BI Magnetics

Series

HM78D

Packaging

Tape & Reel (TR)

Part Status

Discontinued at Digi-Key

Number of Coils

Inductance - Connected In Parallel

2.2µH

Inductance - Connected In Series

7.944µH

Tolerance

±20%

Current Rating - Parallel

4.66A

Current Rating - Series

2.33A

Current Saturation - Parallel

7.06A

Current Saturation - Series

3.53A

DC Resistance (DCR) - Parallel

13mOhm

DC Resistance (DCR) - Series

52.1mOhm

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.303" L x 0.303" W (7.70mm x 7.70mm)

Height

0.189" (4.80mm)
