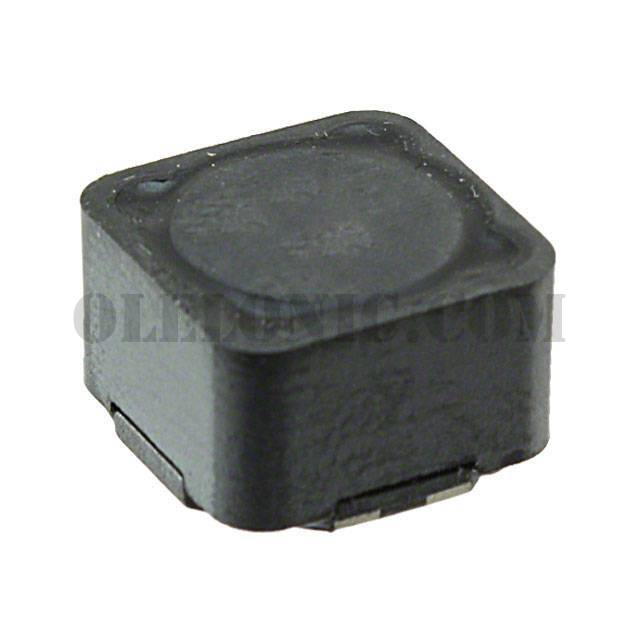

HM78D-128561KLFTR

Part NumberHM78D-128561KLFTR

ManufacturerTT Electronics/BI Magnetics

DescriptionINDUCT ARRAY 2 COIL 560UH SMD

DatasheetHM78D Model

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 2.24mH Inductance - Connected in Series 560µH Inductance - Connected in Parallel 845mOhm DC Resistance (DCR) - Parallel 830mA Nonstandard

To learn about the specification of HM78D-128561KLFTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HM78D-128561KLFTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HM78D-128561KLFTR.
We are offering HM78D-128561KLFTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HM78D-128561KLFTR - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

HM78D Model

Standard Package

500

Manufacturer

TT Electronics/BI Magnetics

Series

HM78D

Packaging

Tape & Reel (TR)

Part Status

Discontinued at Digi-Key

Number of Coils

Inductance - Connected In Parallel

560µH

Inductance - Connected In Series

2.24mH

Tolerance

±10%

Current Rating - Parallel

830mA

Current Rating - Series

400mA

Current Saturation - Parallel

1.5A

Current Saturation - Series

730mA

DC Resistance (DCR) - Parallel

845mOhm

DC Resistance (DCR) - Series

3.38Ohm

Shielding

Shielded

Ratings

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.492" L x 0.492" W (12.50mm x 12.50mm)

Height

0.317" (8.05mm)
