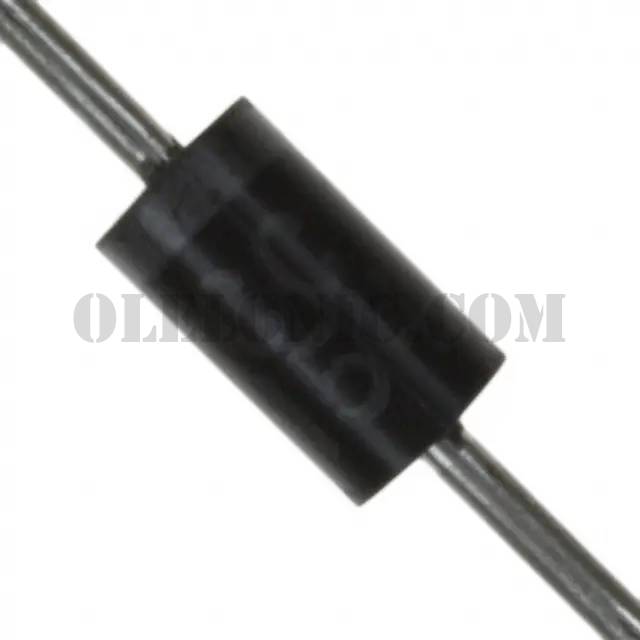

HER503GP-TP

HER503GP-TP

Part NumberHER503GP-TP

ManufacturerMicro Commercial Co

Description5A,200V,HIGH EFFICIENT RECTIFIER

DatasheetHER501GP - HER508GP

Package / CaseDO-201AD, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 5A Through Hole DO-201AD

To learn about the specification of HER503GP-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HER503GP-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HER503GP-TP.
We are offering HER503GP-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HER503GP-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	HER501GP - HER508GP
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1V @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	5µA @ 200V
Capacitance @ Vr, F	100pF @ 4V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-201AD, Axial
Supplier Device Package	DO-201AD
Operating Temperature - Junction	-65°C ~ 150°C
