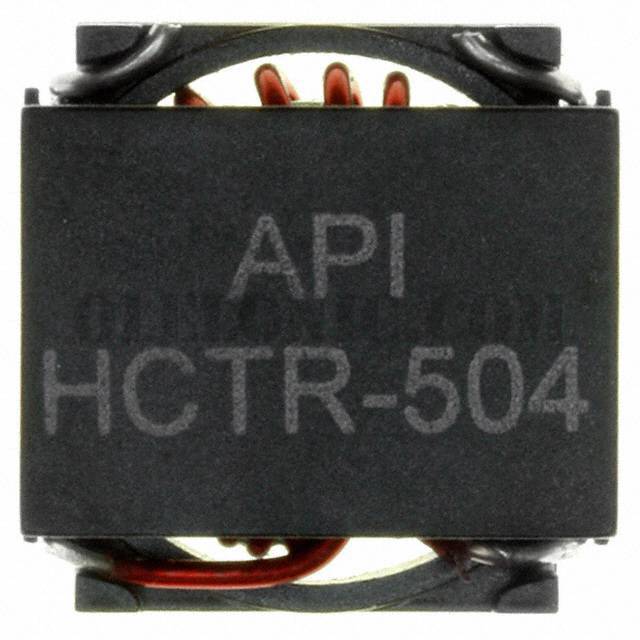

HCTR-504

Part NumberHCTR-504

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 17UH 5.37A 17 MOHM SMD

DatasheetHCT(R) Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description17µH Shielded Toroidal Inductor 5.37A 17mOhm Max Nonstandard

To learn about the specification of HCTR-504, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCTR-504 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCTR-504.
We are offering HCTR-504 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCTR-504 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HCT(R) Series

Standard Package

Manufacturer

API Delevan Inc.

Series

HCTR

Packaging

Bulk

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

17µH

Tolerance

±25%

Current Rating (Amps)

5.37A

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

17mOhm Max

Q @ Freq

22 @ 100kHz

Frequency - Self Resonant

29MHz

Ratings

Operating Temperature

-30°C ~ 130°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.740" L x 0.740" W (18.80mm x 18.80mm)

Height - Seated (Max)

0.400" (10.16mm)
