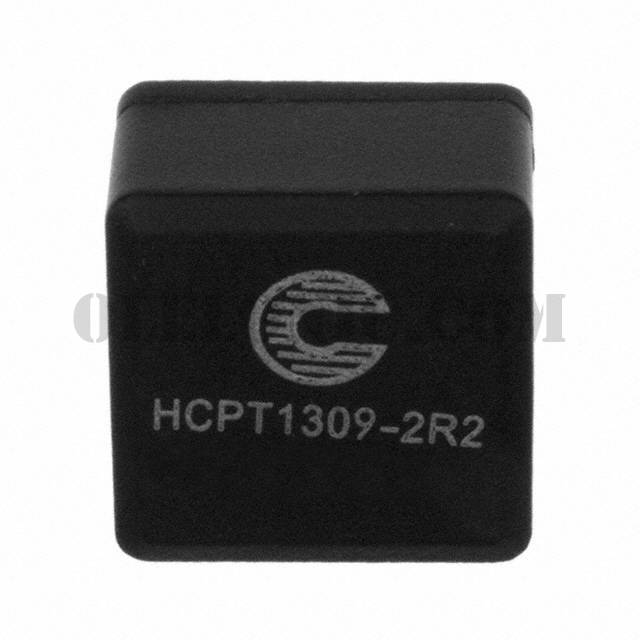

HCPT1309-2R2-R

Part NumberHCPT1309-2R2-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 2.27UH 12.5A 4.1 MOHM

DatasheetHCPT1309 Series

Package / CaseRadial, Horizontal

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.27µH Unshielded Wirewound Inductor 12.5A 4.1mOhm Radial, Horizontal

To learn about the specification of HCPT1309-2R2-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCPT1309-2R2-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCPT1309-2R2-R.
We are offering HCPT1309-2R2-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCPT1309-2R2-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HCPT1309 Series

Standard Package

100

Manufacturer

Eaton - Electronics Division

Series

HCPT1309

Packaging

Tray

Part Status

Active

Type

Wirewound

Material - Core

Iron Powder

Inductance

2.27µH

Tolerance

±20%

Current Rating (Amps)

12.5A

Current - Saturation

25A

Shielding

Unshielded

DC Resistance (DCR)

4.1mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 105°C

Inductance Frequency - Test

100kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal

Supplier Device Package

Size / Dimension

0.531" L x 0.465" W (13.50mm x 11.80mm)

Height - Seated (Max)

0.354" (9.00mm)
