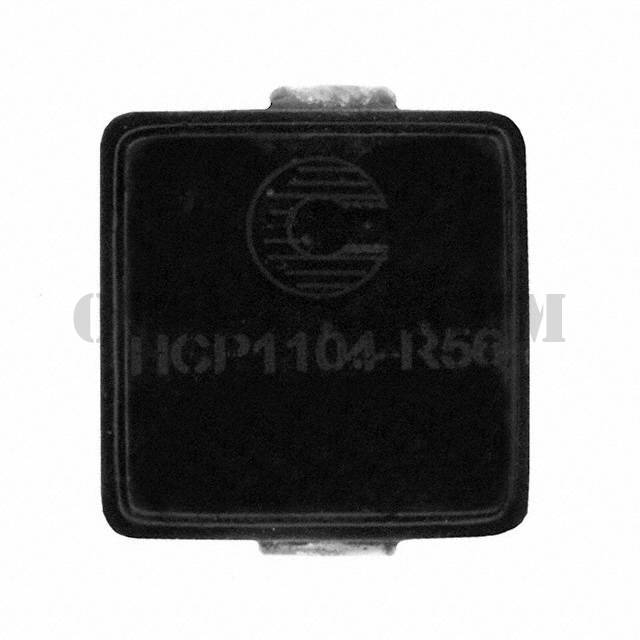

HCP1104-R56-R

Part NumberHCP1104-R56-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 560NH 25A 1.8 MOHM SMD

DatasheetHCP1104 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560nH Unshielded Wirewound Inductor 25A 1.8mOhm Max Nonstandard

To learn about the specification of HCP1104-R56-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCP1104-R56-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCP1104-R56-R.
We are offering HCP1104-R56-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCP1104-R56-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HCP1104 Series

Standard Package

Manufacturer

Eaton - Electronics Division

Series

HCP1104

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Iron Powder

Inductance

560nH

Tolerance

±20%

Current Rating (Amps)

25A

Current - Saturation

32A

Shielding

Unshielded

DC Resistance (DCR)

1.8mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.453" L x 0.394" W (11.50mm x 10.00mm)

Height - Seated (Max)

0.157" (4.00mm)
