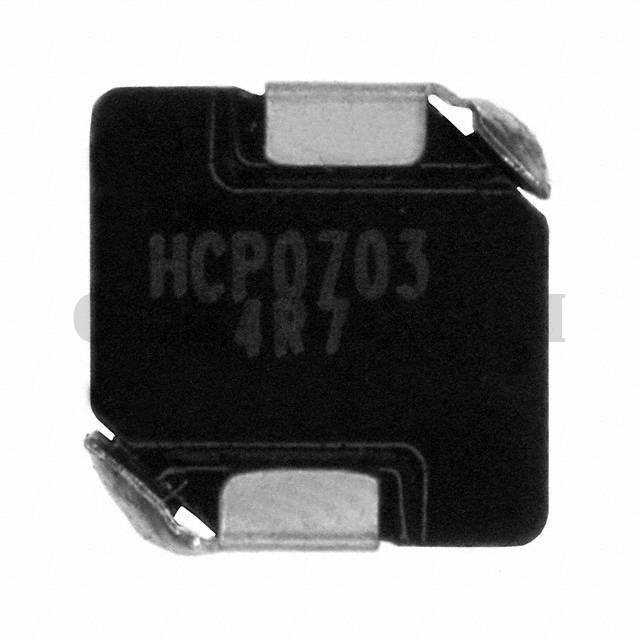

HCP0703-4R7-R

Part NumberHCP0703-4R7-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 4.7UH 5.5A 40 MOHM SMD

DatasheetHCP0703 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4.7µH Shielded Wirewound Inductor 5.5A 40mOhm Max Nonstandard

To learn about the specification of HCP0703-4R7-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCP0703-4R7-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCP0703-4R7-R.
We are offering HCP0703-4R7-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCP0703-4R7-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HCP0703 Series

Standard Package

1500

Manufacturer

Eaton - Electronics Division

Series

HCP0703

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Iron Powder

Inductance

4.7µH

Tolerance

±20%

Current Rating (Amps)

5.5A

Current - Saturation

10A

Shielding

Shielded

DC Resistance (DCR)

40mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.287" L x 0.276" W (7.30mm x 7.00mm)

Height - Seated (Max)

0.118" (3.00mm)
