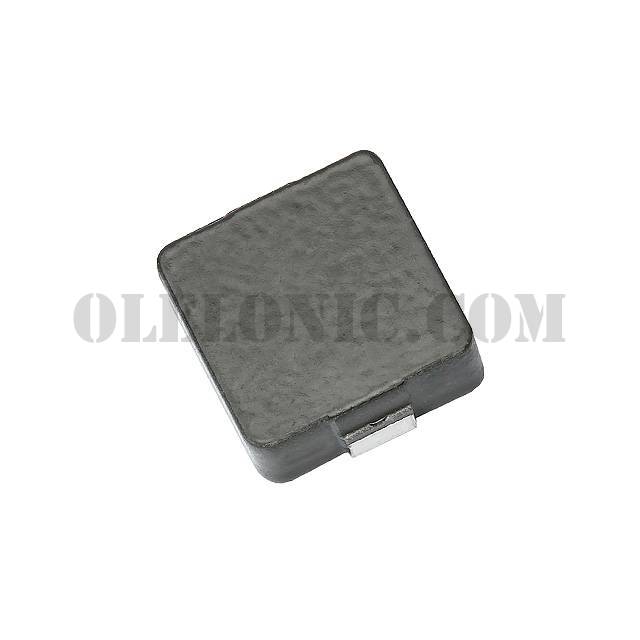

HCMA1707-2R2-R

HCMA1707-2R2-R

Part NumberHCMA1707-2R2-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 2.2UH 37A 2.5 MOHM SMD

DatasheetHCMA1707 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Shielded Wirewound Inductor 37A 2.5mOhm Max Nonstandard

To learn about the specification of HCMA1707-2R2-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCMA1707-2R2-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCMA1707-2R2-R.
We are offering HCMA1707-2R2-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCMA1707-2R2-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	HCMA1707 Series
Standard Package	350
Manufacturer	Eaton - Electronics Division
Series	HCMA1707
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Iron Powder
Inductance	2.2µH
Tolerance	±20%
Current Rating (Amps)	37A
Current - Saturation	34A
Shielding	Shielded
DC Resistance (DCR)	2.5mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.677" L x 0.663" W (17.20mm x 16.85mm)
Height - Seated (Max)	0.276" (7.00mm)
