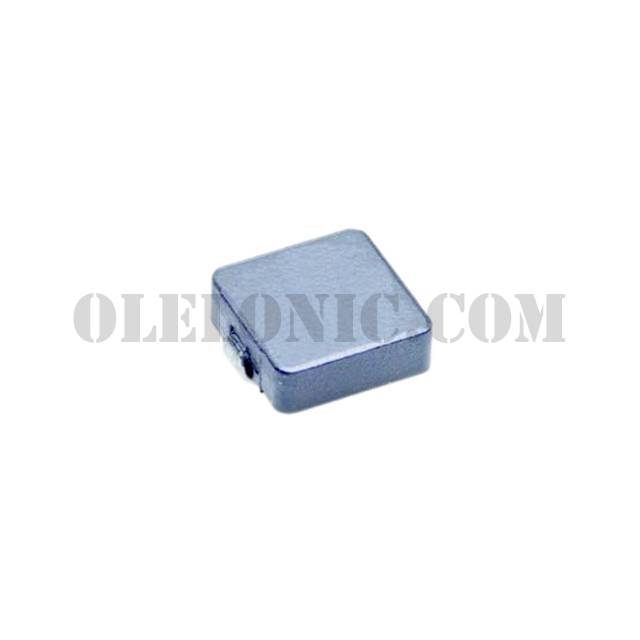

HCMA1104-R36-R

HCMA1104-R36-R

Part NumberHCMA1104-R36-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 360NH 30A 1.2 MOHM SMD

DatasheetHCMA1104 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description360nH Shielded Wirewound Inductor 30A 1.2mOhm Max Nonstandard

To learn about the specification of HCMA1104-R36-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCMA1104-R36-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCMA1104-R36-R.
We are offering HCMA1104-R36-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCMA1104-R36-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	HCMA1104 Series
Standard Package	850
Manufacturer	Eaton - Electronics Division
Series	HCMA1104
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Iron Powder
Inductance	360nH
Tolerance	±20%
Current Rating (Amps)	30A
Current - Saturation	42A
Shielding	Shielded
DC Resistance (DCR)	1.2mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max)	0.157" (4.00mm)
