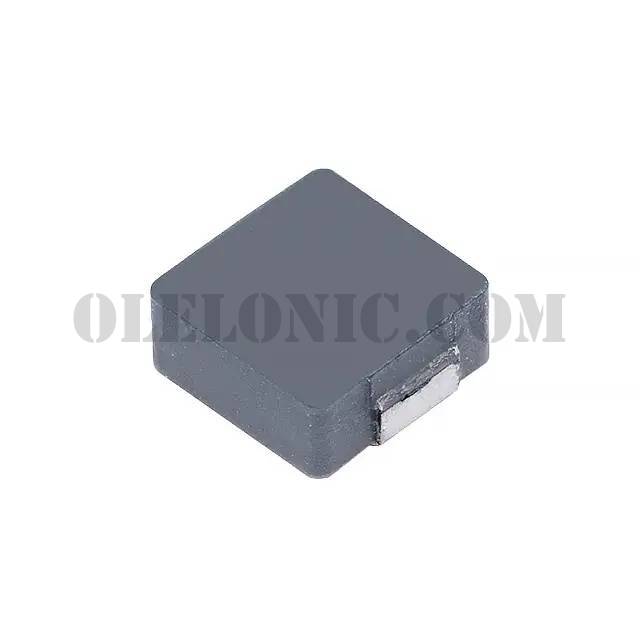

HCMA0703-1R5-R

HCMA0703-1R5-R

Part NumberHCMA0703-1R5-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 1.5UH 9A 15 MOHM SMD

DatasheetHCMA0703 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.5µH Shielded Wirewound Inductor 9A 15mOhm Max Nonstandard

To learn about the specification of HCMA0703-1R5-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCMA0703-1R5-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCMA0703-1R5-R.
We are offering HCMA0703-1R5-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCMA0703-1R5-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	HCMA0703 Series
Standard Package	1500
Manufacturer	Eaton - Electronics Division
Series	HCMA0703
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Iron Powder
Inductance	1.5µH
Tolerance	±20%
Current Rating (Amps)	9A
Current - Saturation	18A
Shielding	Shielded
DC Resistance (DCR)	15mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.280" L x 0.268" W (7.10mm x 6.80mm)
Height - Seated (Max)	0.118" (3.00mm)
