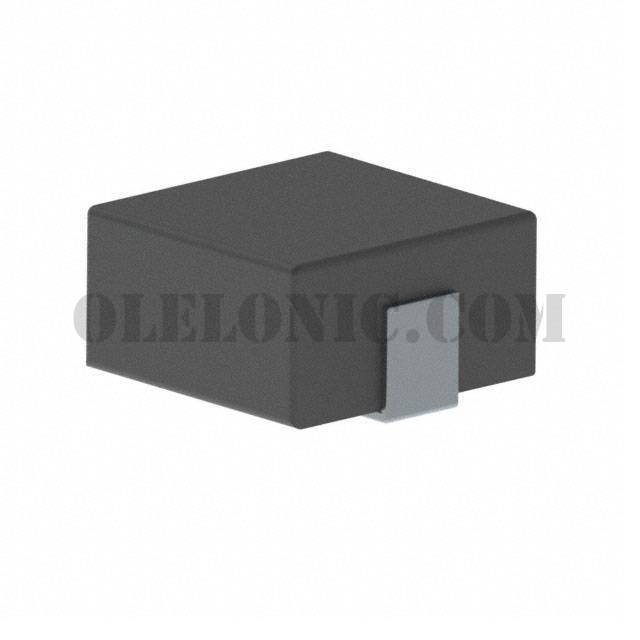

HCM1A0503-5R6-R

HCM1A0503-5R6-R

Part NumberHCM1A0503-5R6-R

ManufacturerEaton - Electronics Division

DescriptionFIXD IND 5.6UH 2.8A 70.6MOHM SMD

DatasheetHCM1A0503 Series

Package / Case2-SMD, J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5.6µH Shielded Inductor 2.8A 70.6mOhm Max 2-SMD, J-Lead

To learn about the specification of HCM1A0503-5R6-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCM1A0503-5R6-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCM1A0503-5R6-R.
We are offering HCM1A0503-5R6-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HCM1A0503-5R6-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	HCM1A0503 Series
Standard Package	2000
Manufacturer	Eaton - Electronics Division
Series	HCM1A
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Material - Core	Iron Powder
Inductance	5.6µH
Tolerance	±20%
Current Rating (Amps)	2.8A
Current - Saturation	4A
Shielding	Shielded
DC Resistance (DCR)	70.6mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 155°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	2-SMD, J-Lead
Supplier Device Package	SMD
Size / Dimension	0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max)	0.118" (3.00mm)
