HCM1305-2R2-R
HCM1305-2R2-R

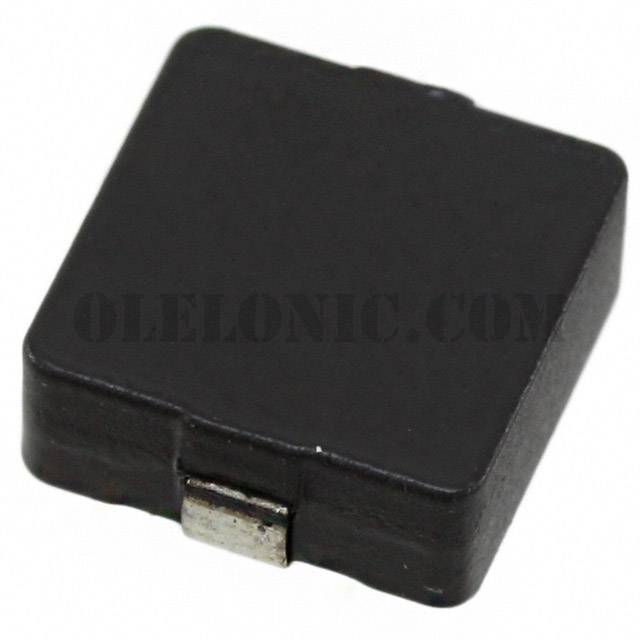

Part Number HCM1305-2R2-R Description FIXED IND 2.2UH 20A 5.29 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.2µH Shielded Wirewound Inductor 20A 5.29mOhm Max Nonstandard
To learn about the specification of HCM1305-2R2-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCM1305-2R2-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCM1305-2R2-R.
We are offering HCM1305-2R2-R for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
HCM1305-2R2-R - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet HCM1305 Series Standard Package 400 Manufacturer Eaton - Electronics Division Series HCM1305 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Iron Powder Inductance 2.2µH Tolerance ±20% Current Rating (Amps) 20A Current - Saturation 32A Shielding Shielded DC Resistance (DCR) 5.29mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.524" L x 0.480" W (13.30mm x 12.20mm) Height - Seated (Max) 0.197" (5.00mm)
