HCM0503-220-R
HCM0503-220-R

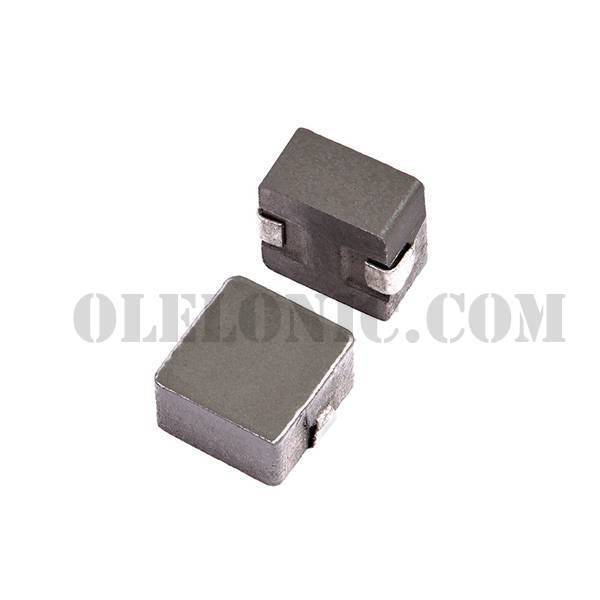

Part Number HCM0503-220-R Description FIXED IND 22UH 1.9A 270 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Shielded Inductor 1.9A 270mOhm Max Nonstandard
To learn about the specification of HCM0503-220-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HCM0503-220-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HCM0503-220-R.
We are offering HCM0503-220-R for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
HCM0503-220-R - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet HCM0503 Series Datasheet Standard Package 1 Manufacturer Eaton - Electronics Division Series HCM0503 Packaging Cut Tape (CT) Part Status Active Type - Material - Core Iron Powder Inductance 22µH Tolerance ±20% Current Rating (Amps) 1.9A Current - Saturation 1.9A Shielding Shielded DC Resistance (DCR) 270mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Size / Dimension 0.203" L x 0.201" W (5.15mm x 5.10mm) Height - Seated (Max) 0.118" (3.00mm)
