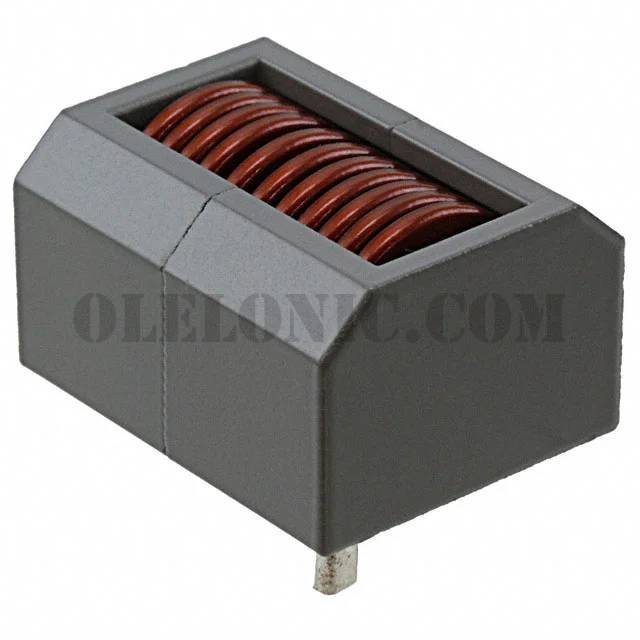

HA55L-3023135LF

Part NumberHA55L-3023135LF

ManufacturerTT Electronics/BI Magnetics

DescriptionFIXED IND 13.5UH 39A 2.76 MOHM

DatasheetHA55 Model

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description13.5µH Shielded Wirewound Inductor 39A 2.76mOhm Max Radial, Horizontal (Open)

To learn about the specification of HA55L-3023135LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HA55L-3023135LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HA55L-3023135LF.
We are offering HA55L-3023135LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HA55L-3023135LF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HA55 Model

Standard Package

108

Manufacturer

TT Electronics/BI Magnetics

Series

HA55

Packaging

Tray

Part Status

Discontinued at Digi-Key

Type

Wirewound

Material - Core

Inductance

13.5µH

Tolerance

Current Rating (Amps)

39A

Current - Saturation

30A

Shielding

Shielded

DC Resistance (DCR)

2.76mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 155°C

Inductance Frequency - Test

100kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal (Open)

Supplier Device Package

Size / Dimension

1.181" L x 0.906" W (30.00mm x 23.00mm)

Height - Seated (Max)

0.669" (17.00mm)
