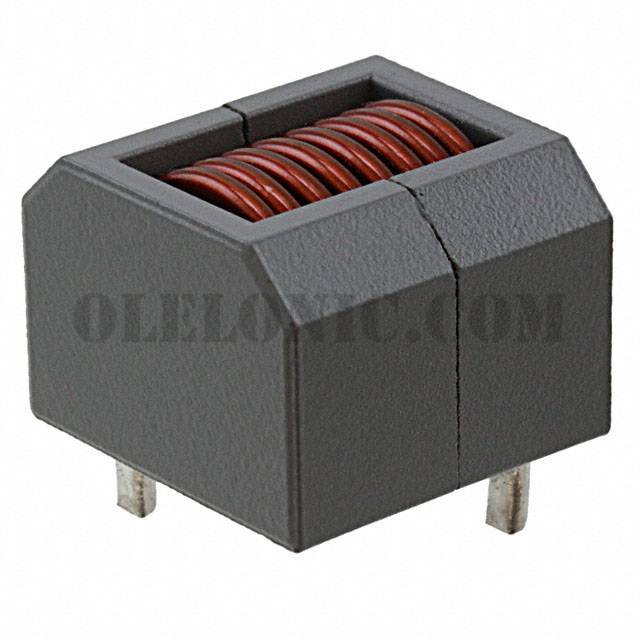

HA55L-2223088LF

Part NumberHA55L-2223088LF

ManufacturerTT Electronics/BI Magnetics

DescriptionFIXED IND 8.83UH 41A 2 MOHM TH

DatasheetHA55 Model

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description8.83µH Shielded Wirewound Inductor 41A 2mOhm Max Radial, Horizontal (Open)

To learn about the specification of HA55L-2223088LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HA55L-2223088LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HA55L-2223088LF.
We are offering HA55L-2223088LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HA55L-2223088LF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HA55 Model

Standard Package

144

Manufacturer

TT Electronics/BI Magnetics

Series

HA55

Packaging

Tray

Part Status

Discontinued at Digi-Key

Type

Wirewound

Material - Core

Inductance

8.83µH

Tolerance

Current Rating (Amps)

41A

Current - Saturation

33A

Shielding

Shielded

DC Resistance (DCR)

2mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 155°C

Inductance Frequency - Test

100kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal (Open)

Supplier Device Package

Size / Dimension

0.906" L x 0.866" W (23.00mm x 22.00mm)

Height - Seated (Max)

0.669" (17.00mm)
