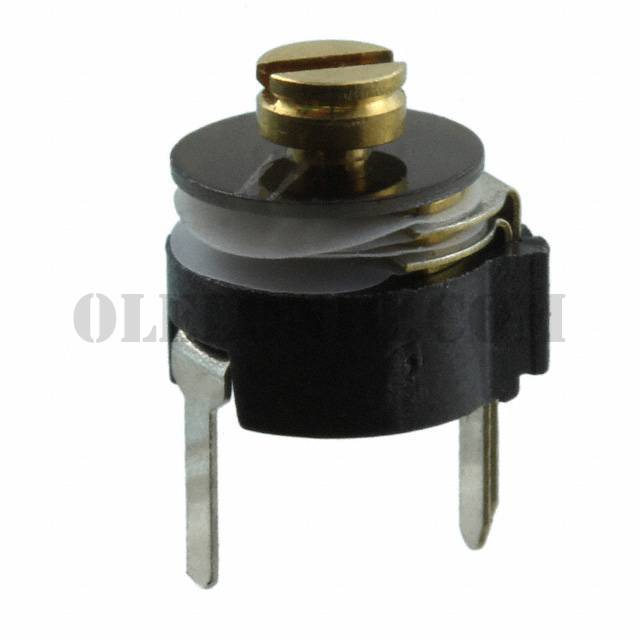

Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series Datasheet
Standard Package	100
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	1.8 ~ 10pF
Adjustment Type	Top
Voltage - Rated	150V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max)	0.228" (5.80mm)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Features	General Purpose
