Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	GSIB1520 thru GSIB1580
Standard Package	20
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800V
Current - Average Rectified (Io)	15A
Voltage - Forward (Vf) (Max) @ If	950mV @ 7.5A
Current - Reverse Leakage @ Vr	10µA @ 800V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, GSIB-5S
Supplier Device Package	GSIB-5S

TS25P06G D2G	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Through Hole TS-6P,	View
UG4KB60TB	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Through Hole D3K,	View
MB6M-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 600V Through Hole MBM,	View
TS4K80-A	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Through Hole TS4K,	View
GBJ810-F	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Through Hole GBJ,	View
DB107TB	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Through Hole DB-M,	View
UG6KB60TB	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Through Hole D3K,	View
DF005M	Diodes Incorporated, Bridge Rectifier Single Phase Standard 50V Through Hole DFM,	View
FUO22-12N	IXYS, Bridge Rectifier Three Phase Standard 1.2kV Through Hole ISOPLUS i4-PAC™,	View
GBPC2502W	GeneSiC Semiconductor, Bridge Rectifier Single Phase Standard 200V Through Hole GBPC-W,	View
UD2KB100-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Through Hole D3K,	View
GBU6K-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 800V Through Hole GBU,	View

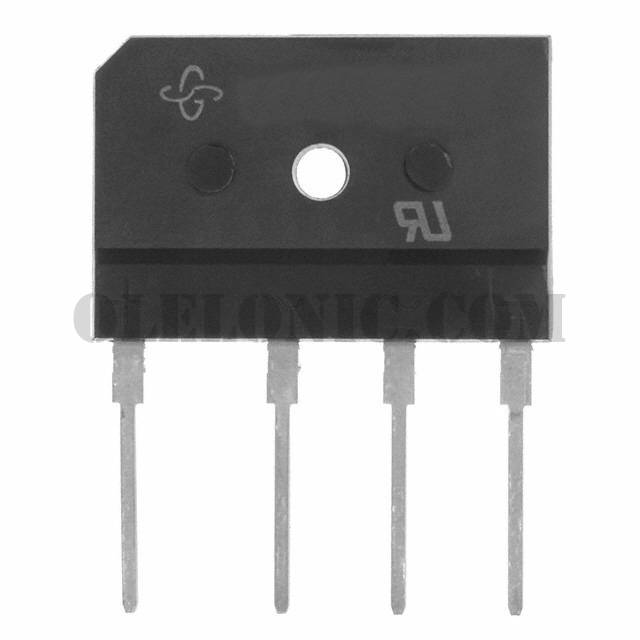

GSIB1580-E3/45
