GP1M009A090FH

Part NumberGP1M009A090FH

ManufacturerGlobal Power Technologies Group

DescriptionMOSFET N-CH 900V 9A TO220F

DatasheetGP1M009A090(F)H

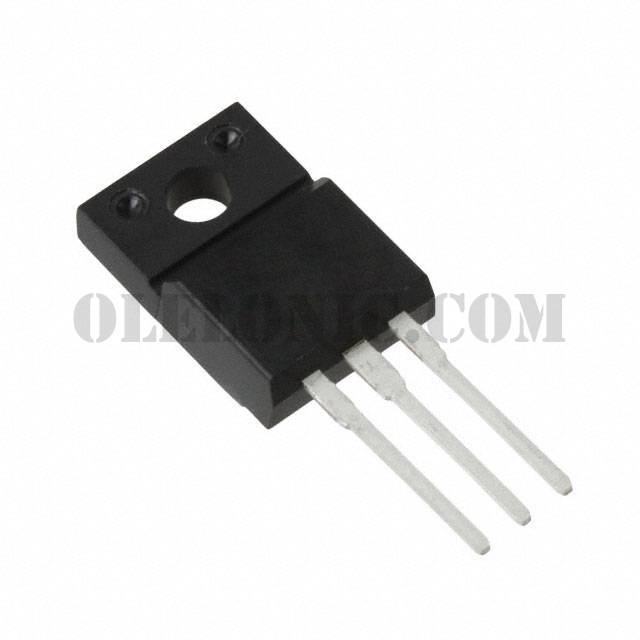

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 900V 9A (Tc) 48W (Tc) Through Hole TO-220F

To learn about the specification of GP1M009A090FH, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GP1M009A090FH with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GP1M009A090FH.
We are offering GP1M009A090FH for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GP1M009A090FH - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

GP1M009A090(F)H

Standard Package

Manufacturer

Global Power Technologies Group

Series

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

900V

Current - Continuous Drain (Id) @ 25°C

9A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

1.4Ohm @ 4.5A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

65nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

2324pF @ 25V

FET Feature

Power Dissipation (Max)

48W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-220F

Package / Case

TO-220-3 Full Pack
