GKI03026

Part NumberGKI03026

ManufacturerSanken

DescriptionMOSFET N-CH 30V 22A 8DFN

DatasheetGKI03026

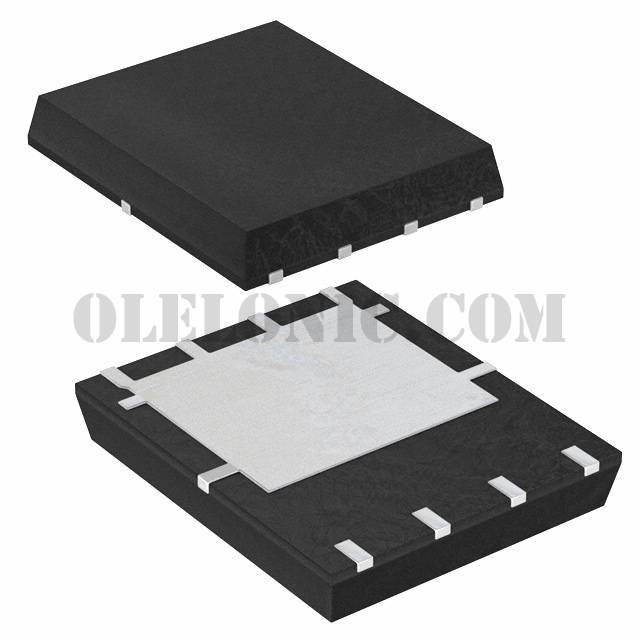

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 22A (Ta) 3.1W (Ta), 77W (Tc) Surface Mount 8-DFN (5x6)

To learn about the specification of GKI03026, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GKI03026 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GKI03026.
We are offering GKI03026 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GKI03026 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

GKI03026

Standard Package

5000

Manufacturer

Sanken

Series

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

22A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

2.6mOhm @ 68A, 10V

Vgs(th) (Max) @ Id

2.5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

64nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

4010pF @ 15V

FET Feature

Power Dissipation (Max)

3.1W (Ta), 77W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-DFN (5x6)

Package / Case

8-PowerTDFN
