Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	GBL005 thru GBL10
Standard Package	20
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1V @ 2A
Current - Reverse Leakage @ Vr	10µA @ 800V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, GBL
Supplier Device Package	GBL
Base Part Number	GBL08

GBPC3504W	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Through Hole GBPC-W,	View
DF005M	ON Semiconductor, Bridge Rectifier Single Phase Standard 50V Through Hole 4-DIP,	View
EDF1BM-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 100V Through Hole DFM,	View
GBJA1510-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Through Hole JA,	View
GBJ1501-F	Diodes Incorporated, Bridge Rectifier Single Phase Standard 100V Through Hole GBJ,	View
GBJ2006-F	Diodes Incorporated, Bridge Rectifier Single Phase Standard 600V Through Hole GBJ,	View
GBU802	Diodes Incorporated, Bridge Rectifier Single Phase Standard 200V Through Hole GBU,	View
GBJ35005-BP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 50V Through Hole GBJ,	View
FUO22-12N	IXYS, Bridge Rectifier Three Phase Standard 1.2kV Through Hole ISOPLUS i4-PAC™,	View
VS-KBPC8005PBF	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V Through Hole D-72,	View
GBU8K	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Through Hole GBU,	View
KBU8M-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Through Hole KBU,	View

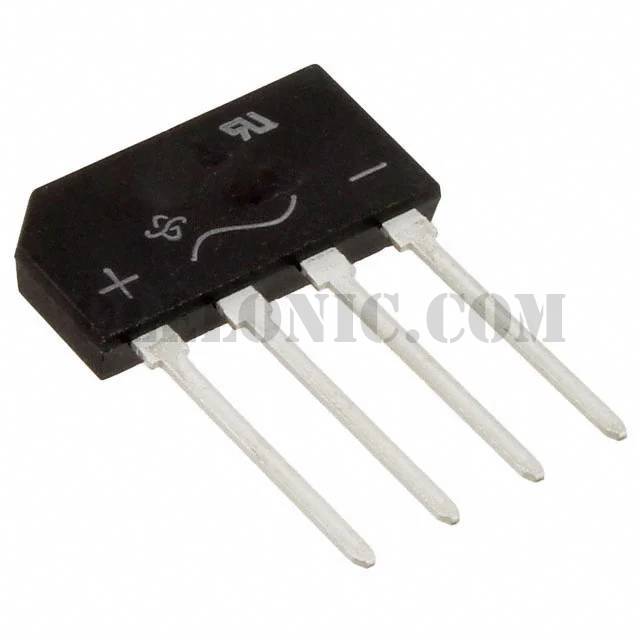

GBL08-E3/45
