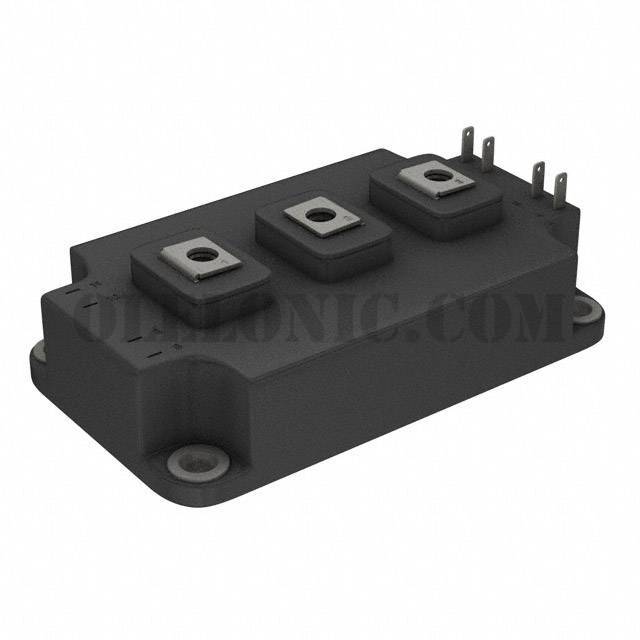

GA400TD25S

Part NumberGA400TD25S

ManufacturerVishay Semiconductor Diodes Division

DescriptionIGBT FAST 250V 400A INT-A-PAK

DatasheetGA400TD25S

Package / CaseDual INT-A-PAK (3 + 8)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Half Bridge 250V 400A 1350W Chassis Mount Dual INT-A-PAK

To learn about the specification of GA400TD25S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GA400TD25S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GA400TD25S.
We are offering GA400TD25S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GA400TD25S - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

GA400TD25S

Standard Package

Manufacturer

Vishay Semiconductor Diodes Division

Series

Part Status

Obsolete

IGBT Type

Configuration

Half Bridge

Voltage - Collector Emitter Breakdown (Max)

250V

Current - Collector (Ic) (Max)

400A

Power - Max

1350W

Vce(on) (Max) @ Vge, Ic

1.6V @ 15V, 400A

Current - Collector Cutoff (Max)

500µA

Input Capacitance (Cies) @ Vce

36nF @ 30V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Dual INT-A-PAK (3 + 8)

Supplier Device Package

Dual INT-A-PAK

Base Part Number

GA*TD
