FZT649

FZT649

Part NumberFZT649

ManufacturerON Semiconductor

DescriptionTRANS NPN 25V 3A SOT-223

DatasheetFZT649

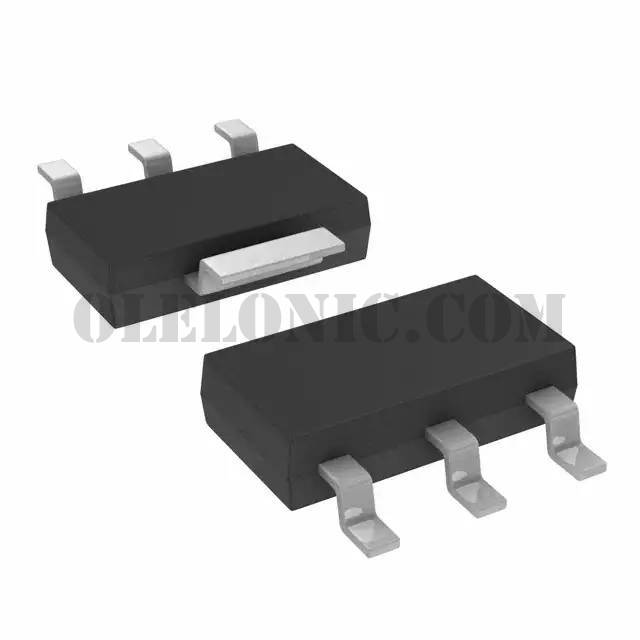

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 25V 3A 150MHz 2W Surface Mount SOT-223-4

To learn about the specification of FZT649, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FZT649 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FZT649.
We are offering FZT649 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FZT649 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	FZT649
Standard Package	4000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	25V
Vce Saturation (Max) @ Ib, Ic	600mV @ 300mA, 3A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1A, 2V
Power - Max	2W
Frequency - Transition	150MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223-4
Base Part Number	FZT649
