FYD0504SATM

FYD0504SATM

Part NumberFYD0504SATM

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 40V 5A DPAK

DatasheetFYD0504SA

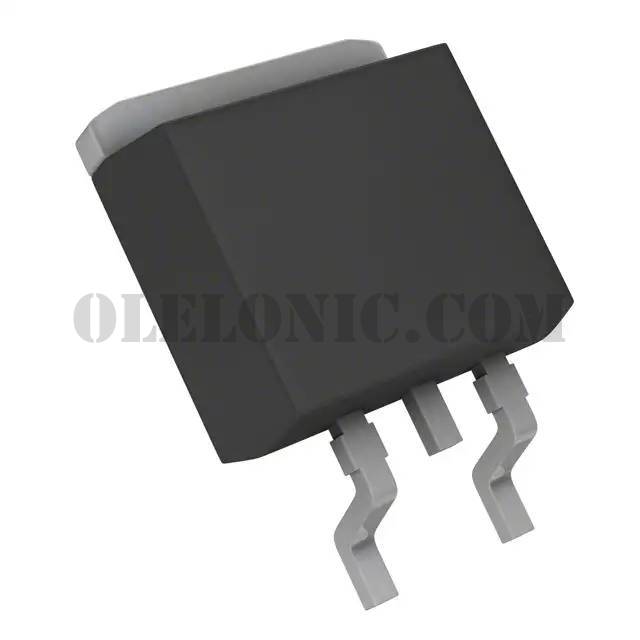

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 5A Surface Mount D-Pak

To learn about the specification of FYD0504SATM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FYD0504SATM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FYD0504SATM.
We are offering FYD0504SATM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FYD0504SATM - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	FYD0504SA
Standard Package	2500
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Last Time Buy
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	550mV @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1mA @ 40V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	D-Pak
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	FYD0504
