FQP4N20L

FQP4N20L

Part NumberFQP4N20L

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 200V 3.8A TO-220

DatasheetFQP4N20L

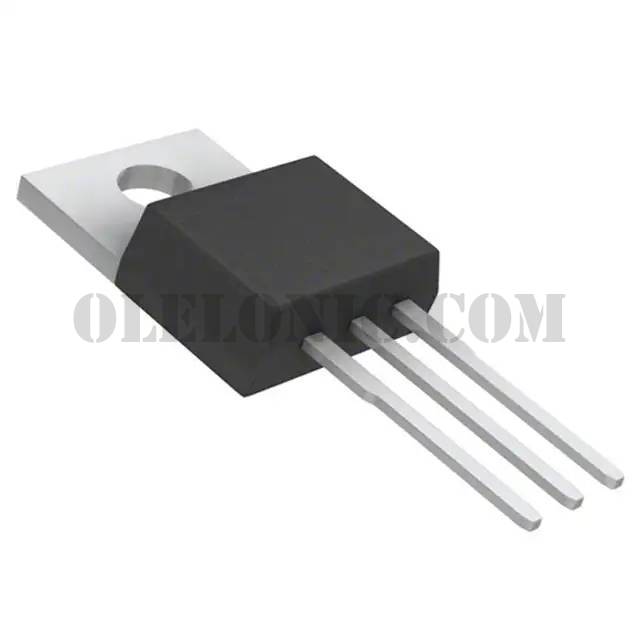

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 3.8A (Tc) 45W (Tc) Through Hole TO-220-3

To learn about the specification of FQP4N20L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FQP4N20L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FQP4N20L.
We are offering FQP4N20L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FQP4N20L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FQP4N20L
Standard Package	1000
Manufacturer	ON Semiconductor
Series	QFET®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	3.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	1.35Ohm @ 1.9A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.2nC @ 5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	310pF @ 25V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
