FQD1N60CTM

FQD1N60CTM

Part NumberFQD1N60CTM

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 600V 1A DPAK

DatasheetFQD1N60C, FQU1N60C

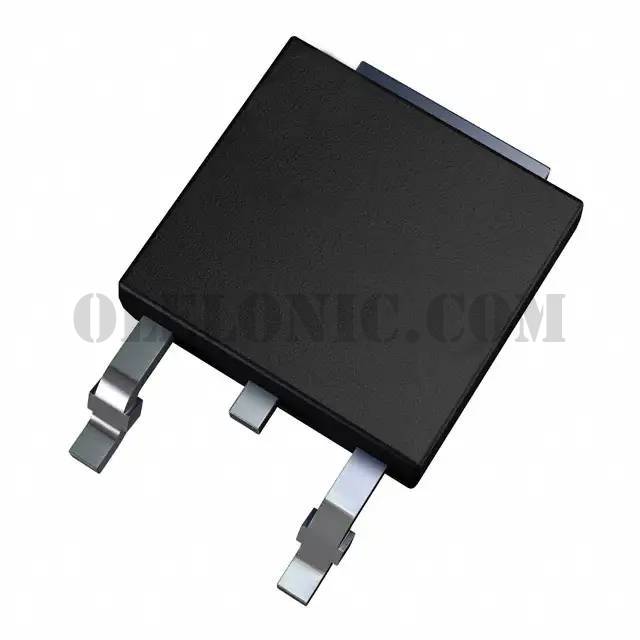

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 1A (Tc) 2.5W (Ta), 28W (Tc) Surface Mount D-Pak

To learn about the specification of FQD1N60CTM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FQD1N60CTM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FQD1N60CTM.
We are offering FQD1N60CTM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FQD1N60CTM - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FQD1N60C, FQU1N60C
Standard Package	2500
Manufacturer	ON Semiconductor
Series	QFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	11.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.2nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	170pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 28W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
