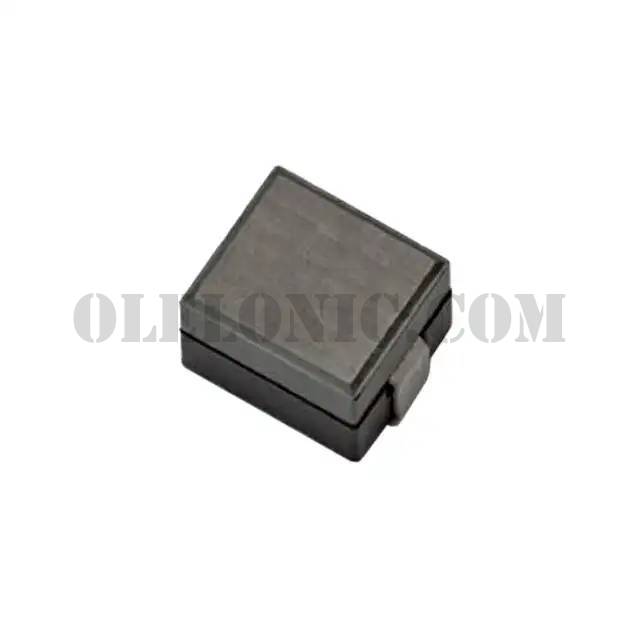

FPV1006-150-R

Part NumberFPV1006-150-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 150NH 25A 0.41 MOHM

DatasheetFPV1006 Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description150nH Shielded Wirewound Inductor 25A 0.41mOhm Max Nonstandard

To learn about the specification of FPV1006-150-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FPV1006-150-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FPV1006-150-R.
We are offering FPV1006-150-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FPV1006-150-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FPV1006 Series Datasheet
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	FPV1006
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	150nH
Tolerance	±10%
Current Rating (Amps)	25A
Current - Saturation	45A
Shielding	Shielded
DC Resistance (DCR)	0.41mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.382" L x 0.331" W (9.70mm x 8.40mm)
Height - Seated (Max)	0.252" (6.40mm)
