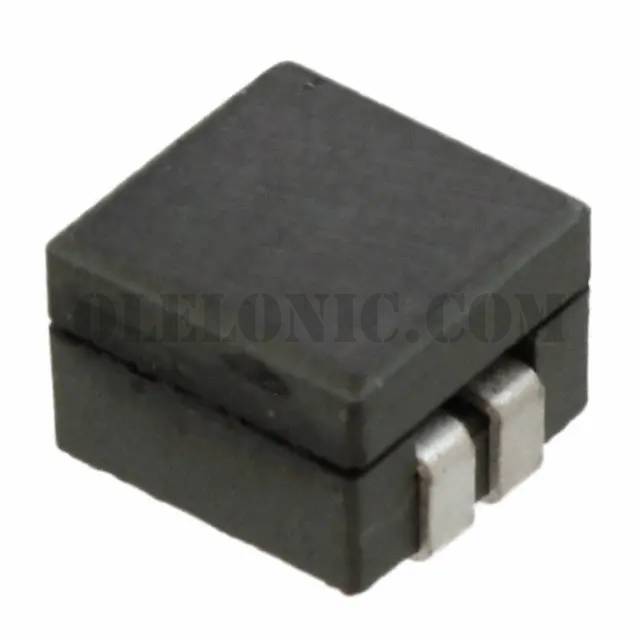

FPT705-200-R


FPT705-200-R

Part NumberFPT705-200-R

Manufacturer

Description

Datasheet

Package / Case2727 (6868 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FPT705-200-R - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesFLAT-PAC, FPT705
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance200nH
Tolerance±12%
Current Rating (Amps)13A
Current - Saturation25A
ShieldingUnshielded
DC Resistance (DCR)0.65mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / Case2727 (6868 Metric)
Supplier Device Package-
Size / Dimension0.295" L x 0.268" W (7.50mm x 6.80mm)
Height - Seated (Max)0.211" (5.35mm)
