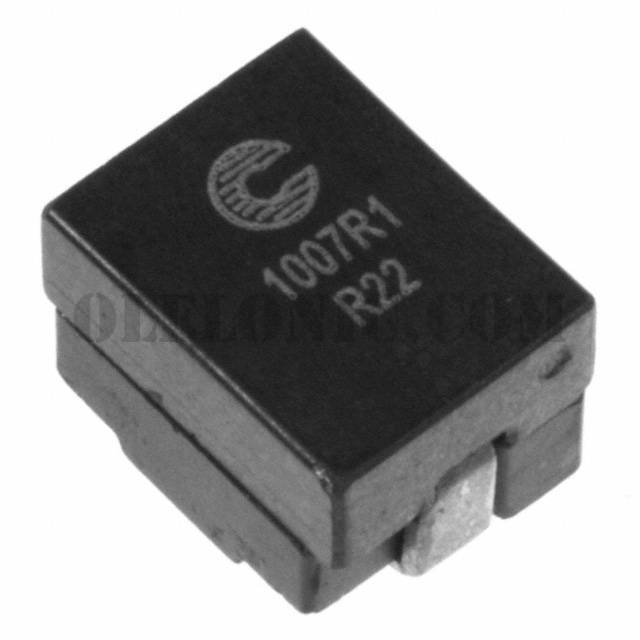

FP1007R1-R22-R

Part NumberFP1007R1-R22-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 215NH 60A 0.29 MOHM

DatasheetFP1007 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description215nH Unshielded Wirewound Inductor 60A 0.29mOhm Nonstandard

To learn about the specification of FP1007R1-R22-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FP1007R1-R22-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FP1007R1-R22-R.
We are offering FP1007R1-R22-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FP1007R1-R22-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FP1007 Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	FLAT-PAC, FP1007
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	215nH
Tolerance	±10%
Current Rating (Amps)	60A
Current - Saturation	50A
Shielding	Unshielded
DC Resistance (DCR)	0.29mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.402" L x 0.307" W (10.20mm x 7.80mm)
Height - Seated (Max)	0.276" (7.00mm)
