FP1006R2-R22-R

Part NumberFP1006R2-R22-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 220NH 45A 0.36 MOHM

DatasheetFP1006 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220nH Unshielded Wirewound Inductor 45A 0.36mOhm Nonstandard

To learn about the specification of FP1006R2-R22-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FP1006R2-R22-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FP1006R2-R22-R.
We are offering FP1006R2-R22-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FP1006R2-R22-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

FP1006 Series

Standard Package

850

Manufacturer

Eaton - Electronics Division

Series

FLAT-PAC, FP1006

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

220nH

Tolerance

±10%

Current Rating (Amps)

45A

Current - Saturation

38A

Shielding

Unshielded

DC Resistance (DCR)

0.36mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

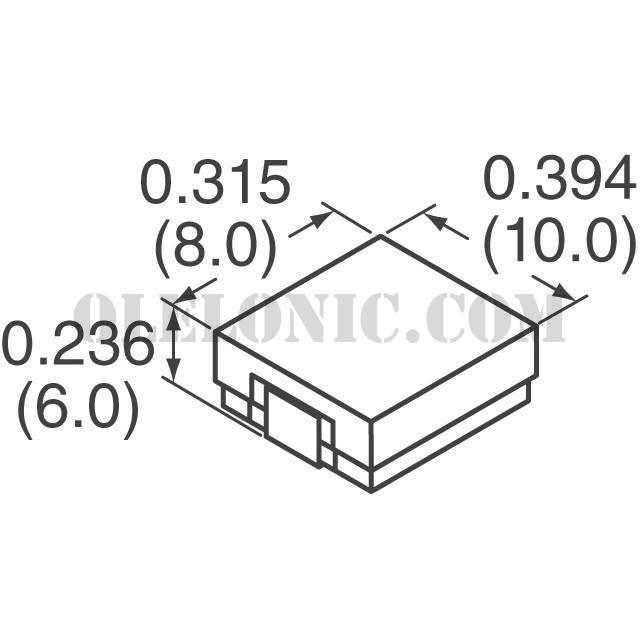

Size / Dimension

0.394" L x 0.315" W (10.00mm x 8.00mm)

Height - Seated (Max)

0.236" (6.00mm)
