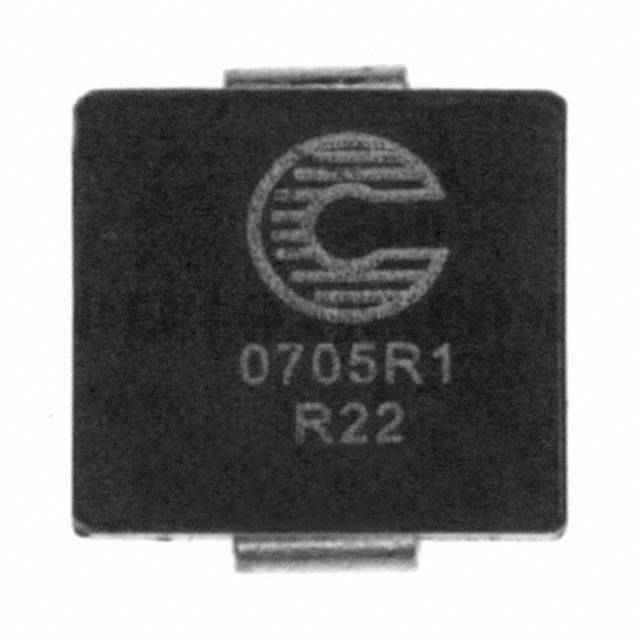

FP0705R1-R22-R

Part NumberFP0705R1-R22-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 220NH 43A 0.25 MOHM

DatasheetFP0705 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220nH Unshielded Wirewound Inductor 43A 0.25mOhm Nonstandard

To learn about the specification of FP0705R1-R22-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FP0705R1-R22-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FP0705R1-R22-R.
We are offering FP0705R1-R22-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FP0705R1-R22-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FP0705 Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	FLAT-PAC, FP0705
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	220nH
Tolerance	±10%
Current Rating (Amps)	43A
Current - Saturation	20A
Shielding	Unshielded
DC Resistance (DCR)	0.25mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max)	0.195" (4.95mm)
