Categories	Capacitors / Film Capacitors

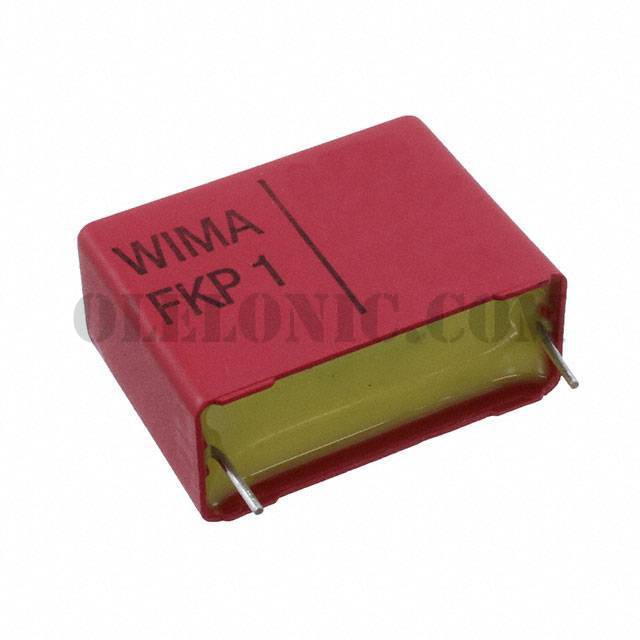

Datasheet	WIMA FKP 1
Standard Package	459
Manufacturer	WIMA
Series	-
Packaging	Bulk
Part Status	Active
Capacitance	0.068µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max)	0.827" (21.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

FKP1T041009HD4KSSD	WIMA, 1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial - 4 Leads,	View
FKP1T016805F00KSSD	WIMA, 6800pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1R013304C00MSSD	WIMA, 3300pF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial,	View
FKP1O124706B00KSSD	WIMA, 0.047µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial,	View
FKP1T012205A00MSSD	WIMA, 2200pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1R014704D00MSSD	WIMA, 4700pF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial,	View
FKP1G022204D00KSSD	WIMA, 0.022µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial,	View
FKP1T021005H00MSC9	WIMA, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1G022204D00JSD0	WIMA, 0.022µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial,	View
FKP1X021006F00KSSD	WIMA, 10000pF Film Capacitor 700V 4000V (4kV) Polypropylene (PP), Metallized Radial,	View
FKP1J026806B00JSC9	WIMA, 0.068µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial,	View
FKP1O126806D00KSSD	WIMA, 0.068µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial,	View

FKP1J026806B00JSC9

Part NumberFKP1J026806B00JSC9
