FK6K02010L


FK6K02010L

Part NumberFK6K02010L

Manufacturer

Description

Datasheet

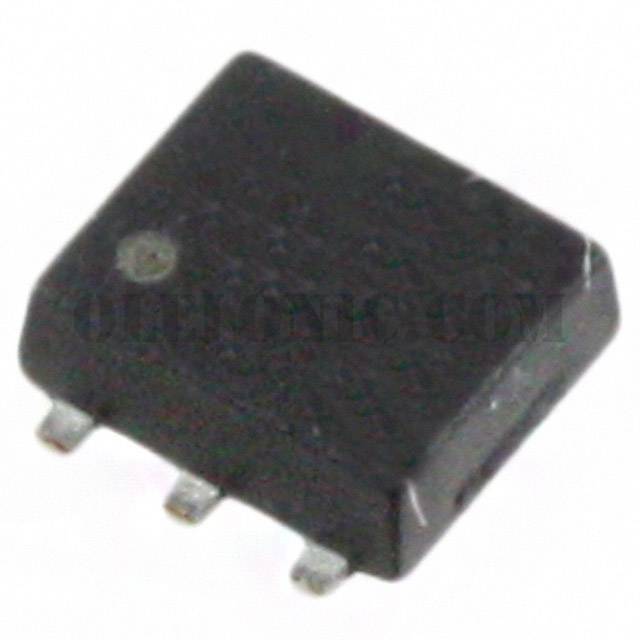

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FK6K02010L - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerPanasonic Electronic Components
Series-
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4V
Rds On (Max) @ Id, Vgs17.5mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.3V @ 1mA
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1730pF @ 10V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageWSMini6-F1-B
Package / Case6-SMD, Flat Leads
