FK4B01120L1

FK4B01120L1

Part NumberFK4B01120L1

ManufacturerPanasonic Electronic Components

DescriptionCSP SINGLE N-CHANNEL MOSFET

DatasheetFK4B01120L1 Spec

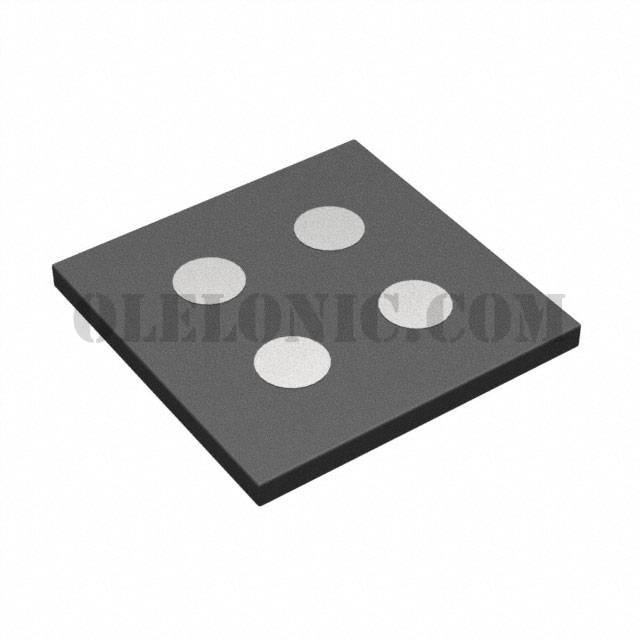

Package / Case4-XFLGA, CSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 3.9A (Ta) 370mW (Ta) Surface Mount ULGA004-W-1010-RA01

To learn about the specification of FK4B01120L1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FK4B01120L1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FK4B01120L1.
We are offering FK4B01120L1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FK4B01120L1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FK4B01120L1 Spec
Standard Package	1000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	3.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	24mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 394µA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	490pF @ 10V
FET Feature	-
Power Dissipation (Max)	370mW (Ta)
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	ULGA004-W-1010-RA01
Package / Case	4-XFLGA, CSP
