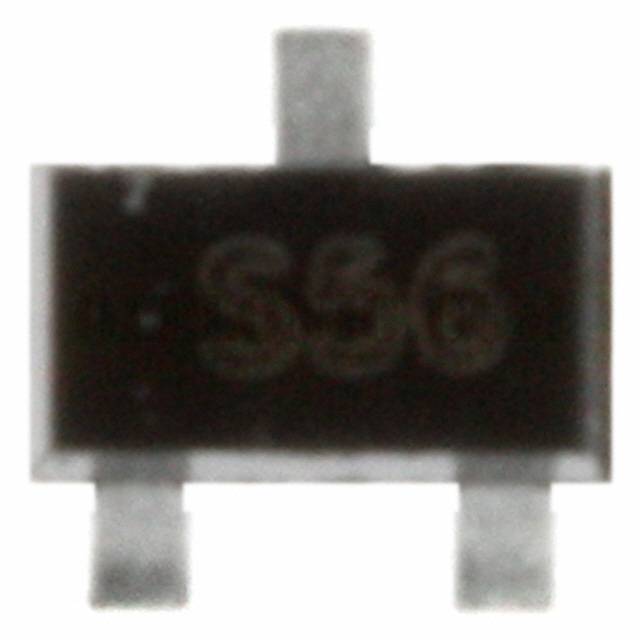

FJY4006R

Part NumberFJY4006R

ManufacturerON Semiconductor

DescriptionTRANS PREBIAS PNP 200MW SOT523F

DatasheetFJY4006R

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50V 100mA 200MHz 200mW Surface Mount SOT-523F

To learn about the specification of FJY4006R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FJY4006R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FJY4006R.
We are offering FJY4006R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FJY4006R - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased
Datasheet	FJY4006R
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP - Pre-Biased
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	10 kOhms
Resistor - Emitter Base (R2)	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	100nA (ICBO)
Frequency - Transition	200MHz
Power - Max	200mW
Mounting Type	Surface Mount
Package / Case	SC-89, SOT-490
Supplier Device Package	SOT-523F
Base Part Number	FJY4006
