Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	FG Series Datasheet
Standard Package	240
Manufacturer	KEMET
Series	FGR
Packaging	Bulk
Part Status	Active
Capacitance	1F
Tolerance	-20%, +80%
Voltage - Rated	5.5V
ESR (Equivalent Series Resistance)	65Ohm @ 1kHz
Lifetime @ Temp.	-
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.200" (5.08mm)
Size / Dimension	0.650" Dia (16.50mm)
Height - Seated (Max)	0.748" (19.00mm)
Operating Temperature	-40°C ~ 85°C

FG26C0G2J682JNT06	TDK Corporation, 6800pF ±5% 630V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG14X7R1E474KNT00	TDK Corporation, 0.47µF ±10% 25V Ceramic Capacitor X7R Radial, FG	View
FG18C0G1H2R2CNT06	TDK Corporation, 2.2pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG18C0G2A100DNT06	TDK Corporation, 10pF ±0.5pF 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG16C0G2A153JNT06	TDK Corporation, 0.015µF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG28C0G2A680JNT00	TDK Corporation, 68pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG24C0G2W561JNT06	TDK Corporation, 560pF ±5% 450V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG23X7R2J154KNT00	TDK Corporation, 0.15µF ±10% 630V Ceramic Capacitor X7R Radial, FG	View
FG18C0G2A470JNT06	TDK Corporation, 47pF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG14C0G2A153JRT06	TDK Corporation, 0.015µF ±5% 100V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG20C0G2W223JNT06	TDK Corporation, 0.022µF ±5% 450V Ceramic Capacitor C0G, NP0 Radial, FG	View
FG26C0G2J561JNT06	TDK Corporation, 560pF ±5% 630V Ceramic Capacitor C0G, NP0 Radial, FG	View

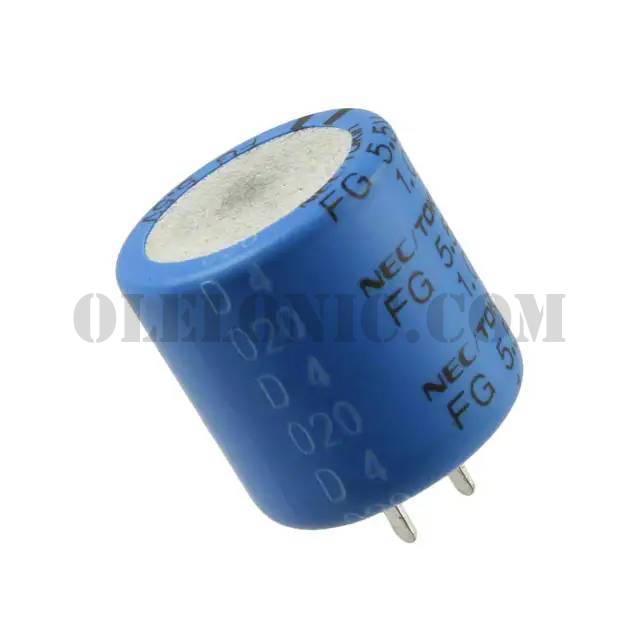

FGR0H105ZF

Part NumberFGR0H105ZF
