Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	FGH40T120SQDNL4
Standard Package	450
Manufacturer	ON Semiconductor
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	160A
Current - Collector Pulsed (Icm)	160A
Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 40A
Power - Max	454W
Switching Energy	1.4mJ (on), 1.1mJ (off)
Input Type	Standard
Gate Charge	221nC
Td (on/off) @ 25°C	46ns/220ns
Test Condition	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)	166ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

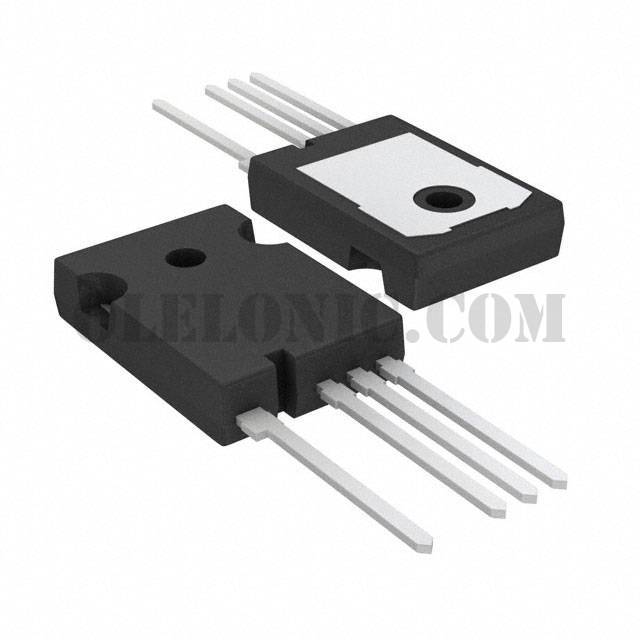

Package / Case	TO-247-4
Supplier Device Package	TO-247-4L
