FDY100PZ

FDY100PZ

Part NumberFDY100PZ

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 350MA SC-89

DatasheetFDY100PZ

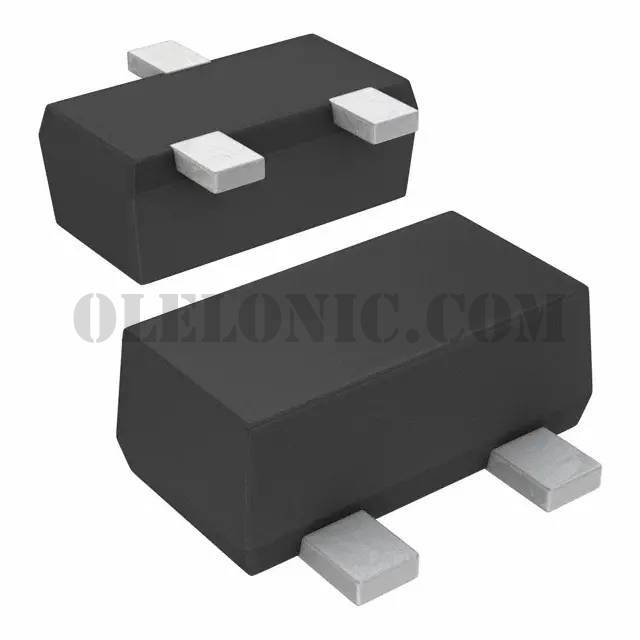

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 350mA (Ta) 625mW (Ta) Surface Mount SC-89-3

To learn about the specification of FDY100PZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDY100PZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDY100PZ.
We are offering FDY100PZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDY100PZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDY100PZ
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	1.2Ohm @ 350mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.4nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	100pF @ 10V
FET Feature	-
Power Dissipation (Max)	625mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-89-3
Package / Case	SC-89, SOT-490
