FDY1002PZ

FDY1002PZ

Part NumberFDY1002PZ

ManufacturerON Semiconductor

DescriptionMOSFET 2P-CH 20V 0.83A SC89-6

DatasheetFDY1002PZ

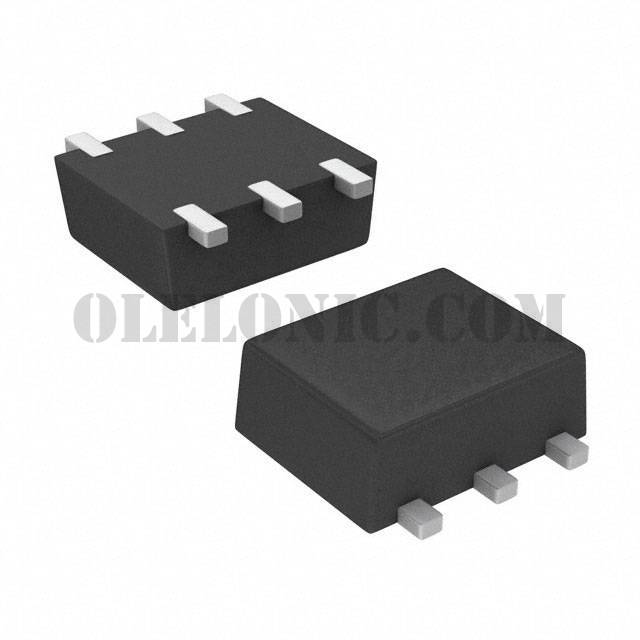

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 830mA 446mW Surface Mount SOT-563F

To learn about the specification of FDY1002PZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDY1002PZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDY1002PZ.
We are offering FDY1002PZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDY1002PZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDY1002PZ
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	830mA
Rds On (Max) @ Id, Vgs	500mOhm @ 830mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	135pF @ 10V
Power - Max	446mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563F
