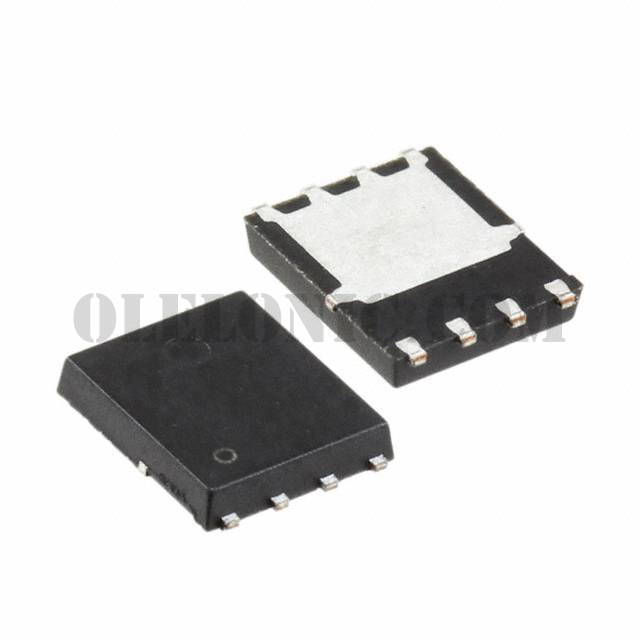

FDWS86068-F085

FDWS86068-F085

Part NumberFDWS86068-F085

ManufacturerON Semiconductor

DescriptionNMOS PWR56 100V 5.8 MOHM

DatasheetFDWS86068-F085

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 80A (Tc) 214W (Ta) Surface Mount 8-DFN (5.1x6.3)

To learn about the specification of FDWS86068-F085, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDWS86068-F085 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDWS86068-F085.
We are offering FDWS86068-F085 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDWS86068-F085 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDWS86068-F085
Standard Package	3000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101, PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2220pF @ 50V
FET Feature	-
Power Dissipation (Max)	214W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5.1x6.3)
Package / Case	8-PowerTDFN
