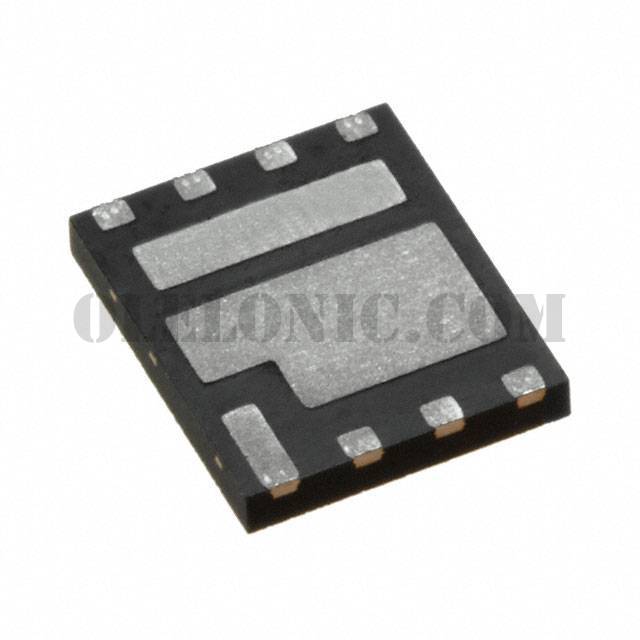

FDPC5030SG

Part NumberFDPC5030SG

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V PWRCLIP56

DatasheetFDPC5030SG

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Asymmetrical 30V 17A, 25A 1W, 1.1W Surface Mount Power Clip 56

To learn about the specification of FDPC5030SG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDPC5030SG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDPC5030SG.
We are offering FDPC5030SG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDPC5030SG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDPC5030SG
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	17A, 25A
Rds On (Max) @ Id, Vgs	5mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1715pF @ 15V
Power - Max	1W, 1.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	Power Clip 56
