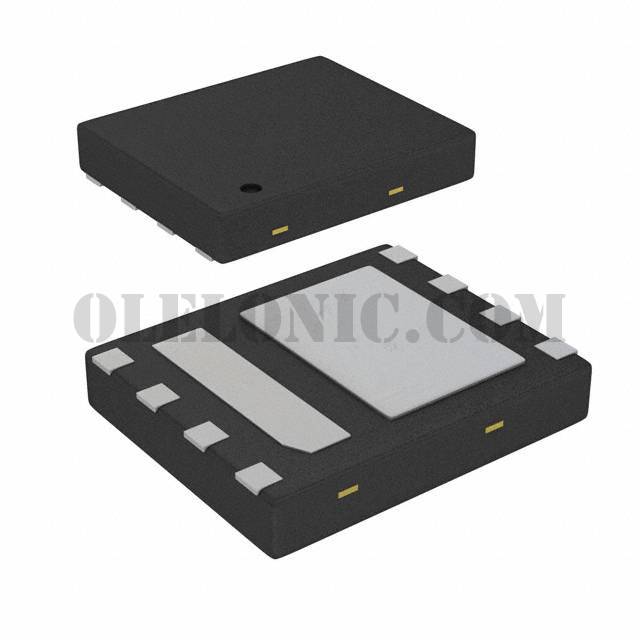

FDMS9620S

FDMS9620S

Part NumberFDMS9620S

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V 7.5A/10A PWR56

DatasheetFDMS9620S

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 7.5A, 10A 1W Surface Mount 8-MLP (5x6), Power56

To learn about the specification of FDMS9620S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS9620S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS9620S.
We are offering FDMS9620S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS9620S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMS9620S
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	7.5A, 10A
Rds On (Max) @ Id, Vgs	21.5mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	665pF @ 15V
Power - Max	1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-MLP (5x6), Power56
