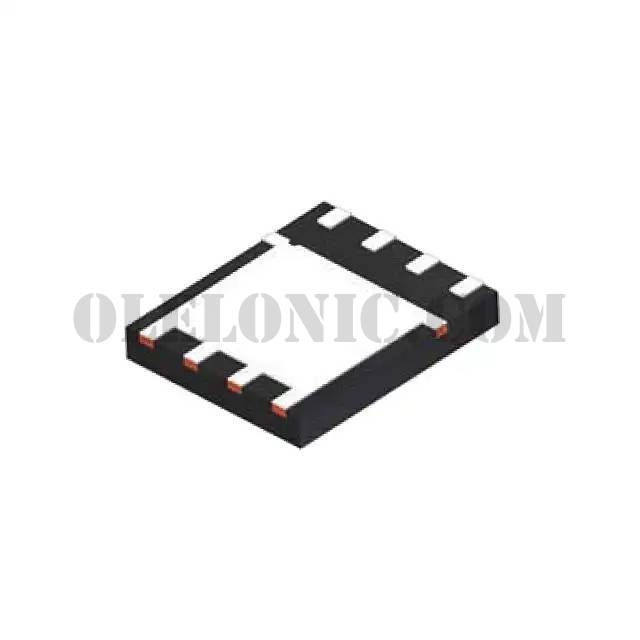

FDMS86150ET100

FDMS86150ET100

Part NumberFDMS86150ET100

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 16A POWER56

DatasheetFDMS86150ET100

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 16A (Ta), 128A (Tc) 3.3W (Ta), 187W (Tc) Surface Mount Power56

To learn about the specification of FDMS86150ET100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS86150ET100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS86150ET100.
We are offering FDMS86150ET100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS86150ET100 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMS86150ET100
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	16A (Ta), 128A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	4.85mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	62nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4065pF @ 50V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 187W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power56
Package / Case	8-PowerTDFN
