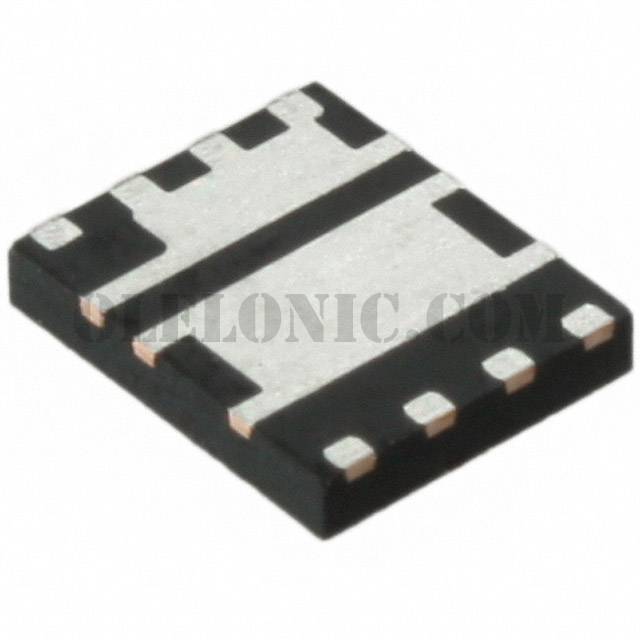

FDMS3660S

FDMS3660S

Part NumberFDMS3660S

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V 13A/30A 8-PQFN

DatasheetFDMS3660S

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Asymmetrical 30V 13A, 30A 1W Surface Mount Power56

To learn about the specification of FDMS3660S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMS3660S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMS3660S.
We are offering FDMS3660S for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMS3660S - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMS3660S
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	13A, 30A
Rds On (Max) @ Id, Vgs	8mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1765pF @ 15V
Power - Max	1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	Power56
Base Part Number	FDMS3660S
