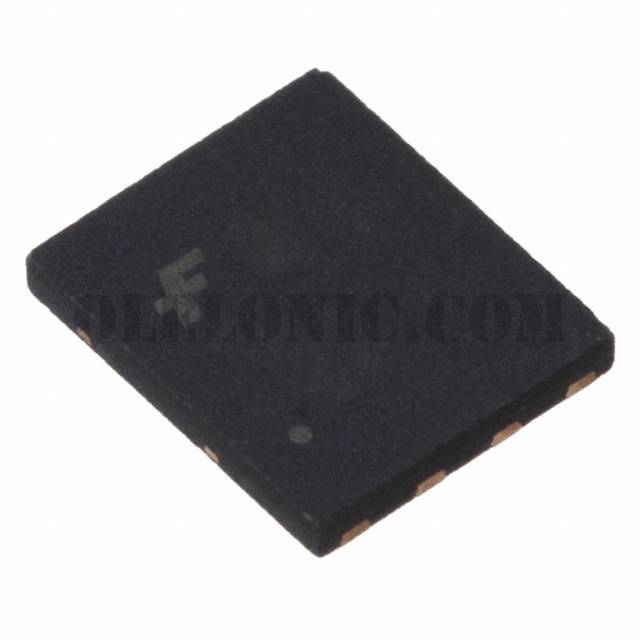

FDMS2734


FDMS2734

Part NumberFDMS2734

Manufacturer

Description

Datasheet

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FDMS2734 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerON Semiconductor
SeriesUltraFET™
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250V
Current - Continuous Drain (Id) @ 25°C2.8A (Ta), 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs122mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs42nC @ 10V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2365pF @ 100V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 78W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (5x6), Power56
Package / Case8-PowerWDFN
