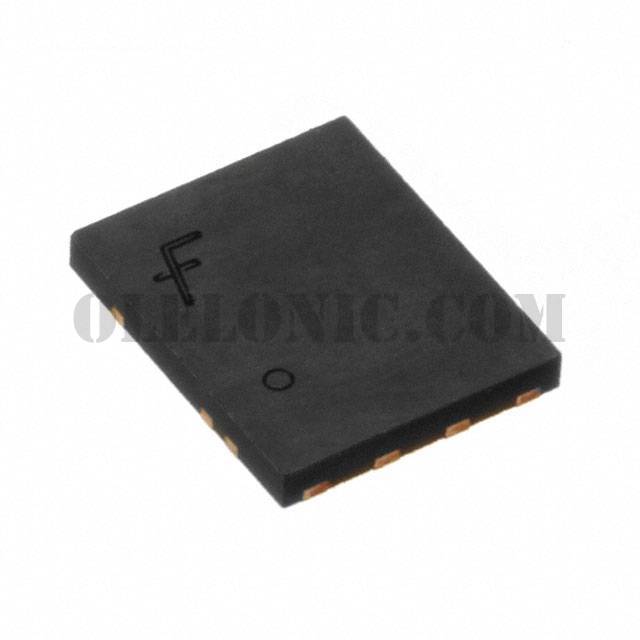

FDMD8680

Part NumberFDMD8680

ManufacturerON Semiconductor

DescriptionMOSFET 2 N-CH 80V 66A 8-PQFN

DatasheetFDMD8680

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 80V 66A (Tc) 39W Surface Mount 8-Power 5x6

To learn about the specification of FDMD8680, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMD8680 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMD8680.
We are offering FDMD8680 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMD8680 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMD8680
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	66A (Tc)
Rds On (Max) @ Id, Vgs	4.7mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	73nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	5330pF @ 40V
Power - Max	39W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-Power 5x6
