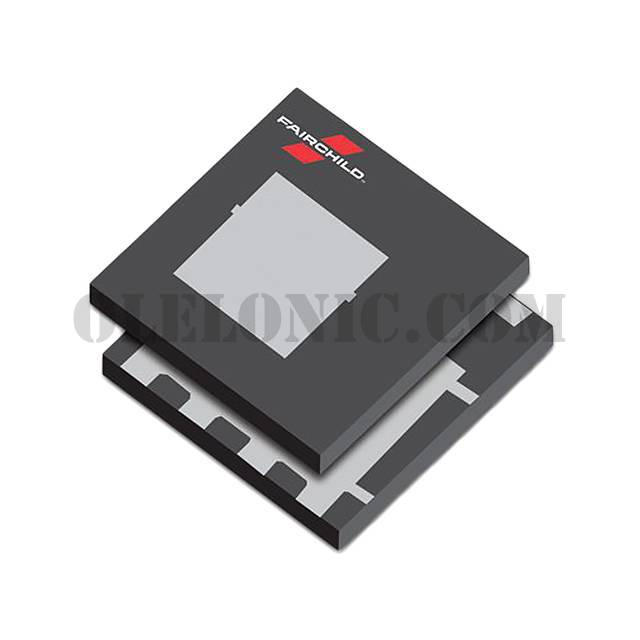

FDMC8010DC
FDMC8010DC
Part Number FDMC8010DC
Description MOSFET 2 N-CH 30V 157A 8-PQFN
Package / Case 8-PowerWDFN
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 30V 37A (Ta) 3W (Ta) Surface Mount 8-PQFN (3.3x3.3)
To learn about the specification of FDMC8010DC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC8010DC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC8010DC.
We are offering FDMC8010DC for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FDMC8010DC - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet FDMC8010DC
Standard Package 3000
Manufacturer ON Semiconductor
Series -
Packaging Tape & Reel (TR)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 37A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 1.28mOhm @ 37A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 94nC @ 15V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 7080pF @ 15V
FET Feature Standard
Power Dissipation (Max) 3W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-PQFN (3.3x3.3)
Package / Case 8-PowerWDFN
